case study

Audi Tunbridge Wells

Client: BDB Design Build Ltd
775M2 Epoxy Quartz Carpet

Project Background

Flexflooring completed the installation of a smart Stonex interior for the new Audi Showroom in Tunbridge Wells. The work was commissioned by BDB Design Build Ltd, a specialist building contractor in motor retail responsible for the construction of many car showrooms up and down the country.

Prep Work

Flexflooring were asked to install approximately 775m2 of floor and 150m2 of curved walls. Our experienced installers started by installing expansion joints over the board joins so to ensure the surface did not crack along these joints. After installing the trim for the returns and around the light fitting, the coloured quartz was trowelled vertically to the wall using a specialist vertical binder.

The result was smooth curved wall with the appearance of being constructed out of stone. The same principles were applied to the concrete slab, using expansion joints in areas where the surface could be prone to fracture. Before installing the floor, the power floated concrete slab was allowed to cure and then shot blasted to enhance the mechanical key, thoroughly vacuumed and an epoxy primer applied 24hours before installing the new surface.

Audi Prep

Products Used

Sidec stone, EAA binder, ETP primer.

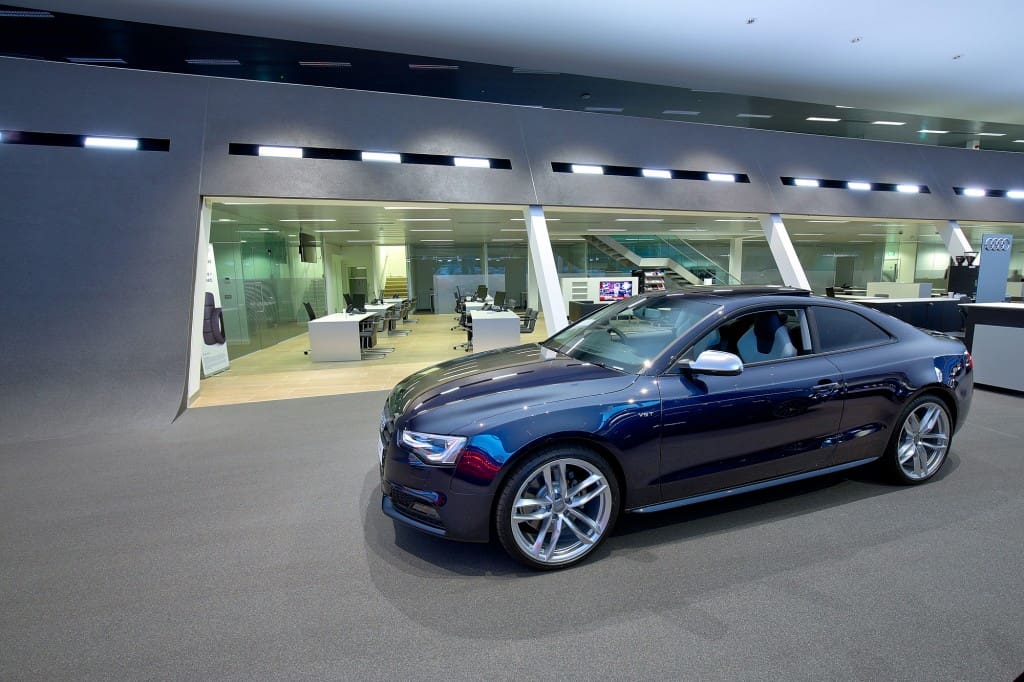

Audi Showroom

The Architect specified a 1-2mm epoxy coated quartz with the coloured inserts of the expansion RAL matched to the quartz. Flexflooring installed approximately 110m of expansion and 165m of trim. The result is a smart clean commercial floor giving the showroom its own unique character.

Stonex is a hard wearing material which made it perfect for this building, which was going to have a combination of high footfall from customers as well as being able to withstand and endure the constant manoeuvring of the sleek Audi cars.

Audi were very happy with the finished result. Find out how more about how we apply industrial epoxy flooring.
